Belarus 560 Tractors

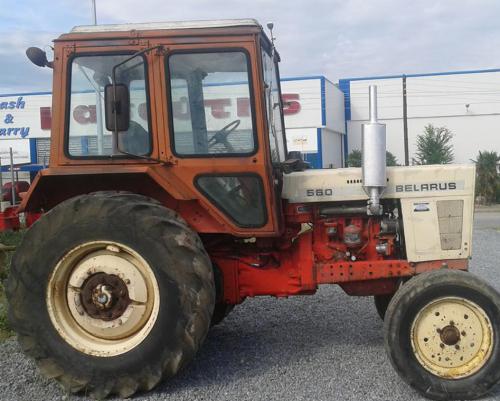

Belarus 560
Power: 70 hp
Date of manufacture :
1981 - 1992
Production
Manufacturer:Belarus
Factory:Minsk, Belarus
Original price:$12,000 (1992 )
Variants
560:2WD
562:4WD
Belarus 560 Power
Engine:70 hp
52.2 kW
PTO (claimed):58 hp
43.3 kW
Belarus 560 Engine
Mechanical
Chassis:4x2 2WD
Steering:power
Brakes:disc
Transmission:9-speed sliding gear
Capacity
Fuel:34.3 gal
129.8 L
Hydraulic system:5.4 gal
20.4 L
Hydraulics
Type:open center
Capacity:5.4 gal
20.4 L
Pressure:1950 psi
134.5 bar
Valves:3
Pump flow:10.5 gpm
39.7 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift (at ends):3700 lbs
1678 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Engine RPM:540@1630
596@1800
Dimensions & Tires
Wheelbase:93.5 inches
237 cm
Weight:6700 lbs
3039 kg
Front tire:7.50x20
Rear tire:15.5x38
Full dimensions and tires ...
