Navigation: Home > Branson > 3015H

Branson 3015H Tractors

Branson 3015H
Power: 30 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:Branson (a part of Kukje)
Type:Compact Utility tractor
Factory:South Korea
Variants
3015R:shuttle
3015H:hydrostatic
Branson 3015H Power
Engine:30 hp
22.4 kW
Branson 3015H Engine
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:power
Brakes:hydraulic wet disc
Cab:Two-post folding ROPS.
Transmission:hydrostatic

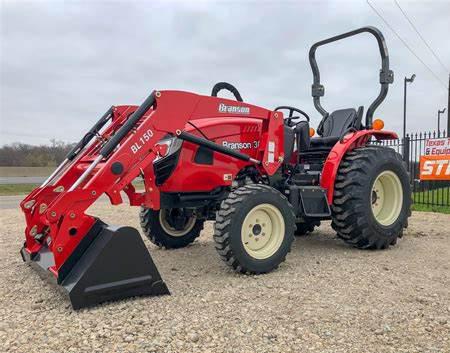

Photos
Branson 3015H photos...
Hydraulics
Pump flow:8.7 gpm
32.9 lpm
Steering flow:4.7 gpm
17.8 lpm
Tractor hitch
Rear Type:I
Control:position control
Rear lift (at ends):3306 lbs
1499 kg
Rear lift (at 24"/610mm):2420 lbs
1097 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/540E
Dimensions & Tires
Wheelbase:65.8 inches
167 cm
Weight:3014 lbs
1367 kg
Front tire:7x16
Rear tire:12.4x24
3015H Serial Numbers
Location:Serial number plate on the front right side of the main tractor frame, above the front axle.
photo of 3015H serial number

Electrical
Ground:negative
Battery volts:12
