Brockway 49D Tractors

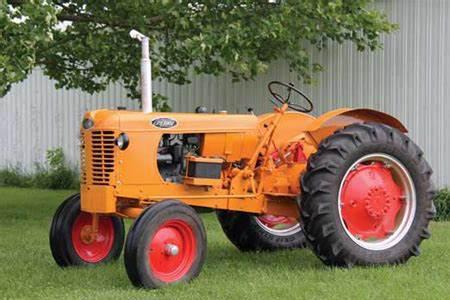

Brockway 49D
Power: 0
Date of manufacture :
1949 - 1952
Production
Manufacturer:Brockway
Type:Utility tractor
Factory:Bedford, Ohio, USA
Variants
49G:gasoline
49D:diesel
Brockway 49D Power
Plows:2*14-inch.
Brockway 49D Engine
Mechanical
Chassis:4x2 2WD
Final drives:chain
Steering:manual
Brakes:mechanical drum
Cab:Open operator station.
Transmission:4-speed gear
Power Take-off (PTO)
Rear PTO:transmission*Optional.
Rear RPM:540
Dimensions & Tires
Wheelbase:75 inches
190 cm
Weight:3600 lbs
1632 kg
Front tire:5.5x16
Rear tire:11x28
Full dimensions and tires ...
Belt Pulley
Diameter:8.5 inches
21 cm
Width:6.25 inches
15 cm
RPM:1072
Speed:2375 ft/min
723.90 meters/min
