Power: 40 hp Date of manufacture : 1961 - 1964

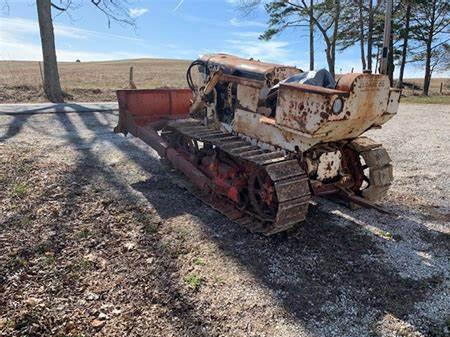

Production Manufacturer: J.I. Case Type: Agricultural Crawler tractor J.I. Case 310E Power Engine: 42 hp 31.3 kW Drawbar (claimed): 30 hp 22.4 kW Belt (claimed): 36 hp 26.8 kW Plows: 3 Drawbar (tested): 29.56 hp 22.0 kW PTO (tested): 36.89 hp 27.5 kW J.I. Case 310E Engines Mechanical Chassis: crawler Brakes: contracting band Cab: Open operator station. Transmission: 3-speed gear Photos J.I. Case 310E photos... Capacity Fuel: 17 gal 64.3 L Hydraulic system: 9 gal 34.1 L Hydraulics Type: open center Capacity: 9 gal 34.1 L Pressure: 1500 psi 103.4 bar Pump flow: 15 gpm 56.8 lpm Tractor hitch Rear lift: 700 lbs 317 kg Power Take-off (PTO) Rear RPM: 540 (1.375) Engine RPM: 540@1727 Dimensions & Tracks Wheelbase: 57 inches 144 cm Weight: 5300 to 7545 pounds 14-inch tracks Full dimensions and tracks ... Belt Pulley Diameter: 8.5 inches 21 cm Width: 6.5 inches 16 cm RPM: 1160 Speed: 2581 ft/min 786.69 meters/min

Case 302-B	Power: 0	Date of manufacture : 1958 - 0000

Case 310	Power: 32 hp[B]	Date of manufacture : 1956 - 1958

Case 310-B	Power: 41 hp[P]	Date of manufacture : 1958 - 1959

Case 310C	Power: 42 hp	Date of manufacture : 1958 - 1960

Case 310E	Power: 40 hp	Date of manufacture : 1961 - 1964

Case 311	Power: 32 hp[B]	Date of manufacture : 1956 - 1958

Case 311-B	Power: 41 hp[P]	Date of manufacture : 1958 - 1959

Case 312	Power: 0	Date of manufacture : 1957 - 0000

Case 312-B	Power: 0	Date of manufacture : 1958 - 0000
