Production |
Distributor: | Century
|
Manufacturer: | Kukje
|
Type: | Compact Utility tractor
|
Factory: | Yangsu-ri, South Korea
|

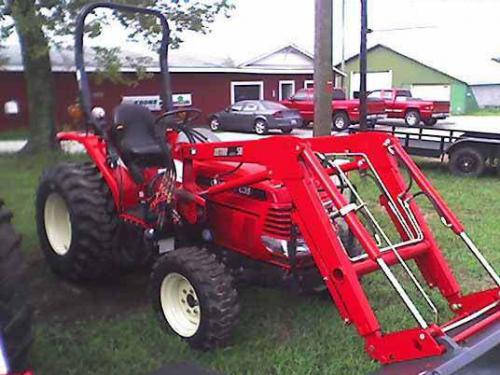

Century C35 Power |
Engine: | 35 hp 26.1 kW
|
PTO (claimed): | 30 hp 22.4 kW
|
Mechanical |
Chassis: | 4x4 MFWD 4WD
|
Differential lock: | foot pedal
|
Steering: | hydrostatic power
|
Brakes: | differential wet disc
|
Cab: | ROPS.
|
Transmission: | 12-speed partially synchronized
|
Capacity |
Fuel: | 10.6 gal 40.1 L
|
Hydraulic system: | 9.25 gal 35.0 L
|
Front axle: | 7.4 qts 7.0 L
|
Hydraulics |
Type: | open center
|
Capacity: | 9.25 gal 35.0 L
|
Valves: | 1 to 3
|
Pump flow: | 8.9 gpm 33.7 lpm
|
Total flow: | 13.2 gpm 50.0 lpm
|
Tractor hitch |
Rear Type: | I
|
Rear lift (at ends): | 2,580 lbs 1170 kg
|
Power Take-off (PTO) |
Rear PTO: | live (2-stage clutch)
|
Rear RPM: | 540/1000
|
Dimensions & Tires |
Wheelbase: | 65 inches 165 cm
|
Weight: | 3,640 lbs 1651 kg
|
Front tire: | 7-16
|
Rear tire: | 12.4-24
|
Full dimensions and tires ... |
C35 Serial Numbers |
Location: | Rear of tractor below PTO.
|
Electrical |
Ground: | negative
|
Charging amps: | 45
|
Battery volts: | 12
|
|
