Challenger 85D Tractors

Challenger 85D
Power: 370 hp
Date of manufacture :
1996 - 1997
Production
Manufacturer:Challenger (a part of Caterpillar)
Type:Agricultural Crawler tractor
Original price:$155,200 (1997 )
Challenger 85D Power
Engine (gross):370 hp
275.9 kW
Drawbar (claimed):265 hp
197.6 kW
PTO (claimed):318 hp
237.1 kW
Drawbar (tested):271.64 hp
202.6 kW
PTO (tested):334.95 hp
249.8 kW
Challenger 85D Engine
Mechanical
Chassis:crawler
Steering:hydrostatic differential steering
Brakes:hydraulic wet disc
Cab:Cab standard with air-conditioning.
Transmission:10-speed full power shift

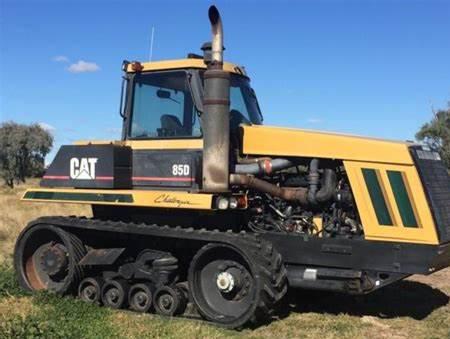

Photos
Challenger 85D photos...
Capacity
Fuel:203 gal
768.4 L
Hydraulic system:29 gal
109.8 L
Hydraulics
Type:closed-center pressure-compensated
Capacity:29 gal
109.8 L
Pressure:2750 psi
189.6 bar
Valves:4
Pump flow:27 gpm
102.2 lpm
 35 gpm
132.5 lpm *Optional
Power Take-off (PTO)
Rear PTO:independent*Optional
Rear RPM:1000 (1.75)
Engine RPM:1000@2050
Dimensions & Tracks
Wheelbase:107 inches
271 cm
Weight:34234 lbs
15528 kg
25-in track
Full dimensions and tracks ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:145
Batteries:2
Battery CCA:900
Battery volts:12
