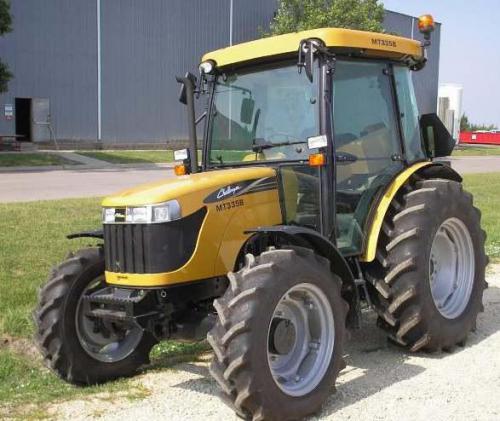

Challenger MT335B Tractors
 |
|
Power: 78 hp
Date of manufacture : 2006 - 2009 |
| Production |
| Manufacturer: | Challenger (a part of AGCO)
|
| Type: | Utility tractor
|
| Challenger MT335B Power |
| Engine (gross): | 78 hp
58.2 kW
|
| PTO (claimed): | 65 hp
48.5 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | electro-hydraulic
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Two-post folding ROPS. Cab with air-conditioning optional.
|
| Transmissions: | 12-speed synchronized shuttle
|
| | 12-speed power shuttle
|
| Hydraulics |
| Type: | open center
|
| Pressure: | 2755 psi
190.0 bar
|
| Rear valves: | 2 or 3
|
| Mid valves: | 0 or 2
|
| SCV flow: | 15.8 gpm
59.8 lpm
|
| Total flow: | 22.4 gpm
84.8 lpm
|
| Tractor hitch |
| Rear Type: | I/II
|
| Control: | position and draft control
|
| Rear lift (at ends): | 5500 lbs
2494 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Rear RPM: | 540
|
| | 540/540E*Optional.
|
| Dimensions & Tires |
| Wheelbase: | 82.7 inches
210 cm
|
| Weight: | 5291 to 7716 pounds
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 80
|
| Battery CCA: | 675
|
| Battery volts: | 12
|
|
