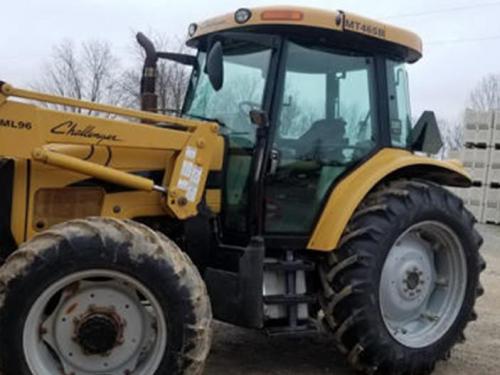

Challenger MT465B Tractors
 |
|
Power: 105 hp
Date of manufacture : 2004 - 2013 |
| Production |
| Manufacturer: | Challenger (a part of AGCO)
|
| Type: | Utility tractor
|
| Factory: | Beauvais, France
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | inboard planetary
|
| Differential lock: | electro-hydraulic
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Cab: | ROPS. Cab optional with air-conditioning.
|
| Transmission: | 16-speed four speed power shift
|
| Hydraulics |
| ROPS Type: | open center
|
| Cab Type: | closed center load sensing
|
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 2 to 4
|
| Pump flow: | 26.4 gpm
99.9 lpm (open center)
|
| | 29 gpm
109.8 lpm (CCLS)
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | electronic top-link draft control
|
| Rear lift (at 24"/610mm): | 7285 lbs
3304 kg
|
| Rear Arms: | telescopic stabilizers and link ends
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic wet disc
|
| Rear RPM: | 540/1000
|
| | 540/540E/1000/1000E
|
| Dimensions & Tires |
| Wheelbase: | 97 inches
246 cm
|
| Weight: | 9170 to 9975 pounds
|
| Front tire: | 10.00-16
|
| Rear tire: | 18.4R38
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
