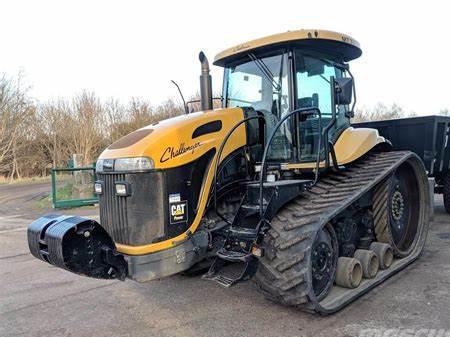

Challenger MT745B Tractors
|
|
Power: 269 hp
Date of manufacture : 2005 - 2008 |
Production |
Manufacturer: | Challenger (a part of AGCO)
|
Type: | Agricultural Crawler tractor
|
Factory: | Jackson, Minnesota, USA
|
Challenger MT745B Power |
Engine (gross): | 269 hp 200.6 kW
|
PTO (claimed): | 225 hp 167.8 kW
|
Mechanical |
Chassis: | crawler
|
Cab: | cab with A/C standard
|
Transmission: | 16-speed full power shift
|
Hydraulics |
Type: | closed-center, PFC
|
Pressure: | 2900 psi 200.0 bar
|
Valves: | 4 to 6
|
Pump flow: | 43.5 gpm 164.6 lpm
|
Tractor hitch |
Rear Type: | 3/3N
|
Rear lift: | 16,000 lbs 7257 kg
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 1000
|
Dimensions & Tracks |
Wheelbase: | 96 inches 243 cm
|
Weight: | 31,075 lbs 14095 kg
|
tracks |
Full dimensions and tracks ... |
Electrical |
Charging system: | alternator
|
Charging amps: | 185
|
Batteries: | 2
|
Battery CCA: | 1000
|
Battery volts: | 12
|
|
