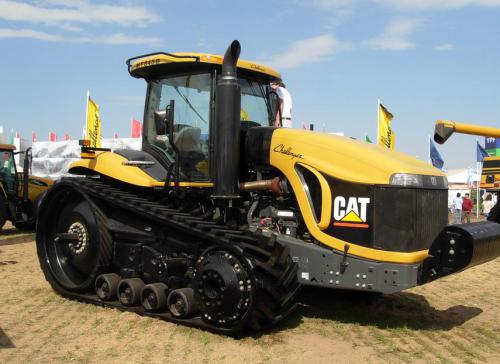

Challenger MT845C Tractors
 |
|
Power: 440 hp
Date of manufacture : 2009 - 2013 |
| Production |
| Manufacturer: | Challenger (a part of AGCO)
|
| Type: | Agricultural Crawler tractor
|
| Factory: | Jackson, Minnesota, USA
|
| Original price: | $397,457 (2013 )
|
| Challenger MT845C Power |
| Engine (gross): | 440 hp
328.1 kW
|
| PTO (claimed): | 360 hp
268.5 kW
|
| Drawbar (tested): | 331.68 hp
247.3 kW
|
| PTO (tested): | 442.53 hp
330.0 kW
|
| Mechanical |
| Chassis: | crawler
|
| Steering: | speed sensitive differential
|
| Brakes: | hydraulic wet discs
|
| Trailer brakes: | hydraulic*Optional
|
| Cab: | Cab standard with air-conditioning.
|
| Transmission: | 16-speed full power shift
|
| Hydraulics |
| Type: | closed center pressure-flow compensated
|
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 4 to 6
|
| SCV flow: | 36 gpm
136.3 lpm
|
| Total flow: | 43.5 gpm
164.6 lpm
|
| | 59 gpm
223.3 lpm *Optional
|
| Tractor hitch |
| Rear Type: | III/IVN
|
| | IV
|
| Rear lift: | 19500 lbs
8845 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000 (1.75)
|
| Dimensions & Tracks |
| Wheelbase: | 118 inches
299 cm
|
| Weight: | 41,000 lbs
18597 kg
|
| 30-inch tracks |
| Full dimensions and tracks ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 185
|
| Batteries: | 4
|
| Battery CCA: | 1000
|
| Battery volts: | 12
|
|
