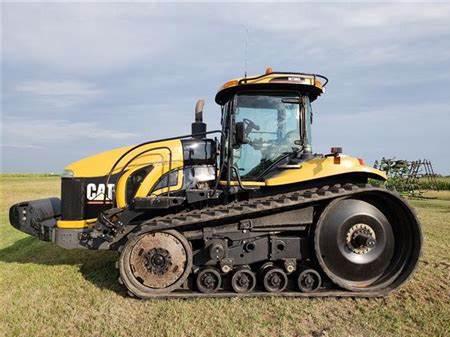

Challenger MT865 Tractors
 |
|
Power: 500 hp
Date of manufacture : 2002 - 2004 |
| Production |
| Manufacturer: | Challenger (a part of AGCO)
|
| Type: | Agricultural Crawler tractor
|
| Factory: | USA
|
| Challenger MT865 Power |
| Engine (gross): | 500 hp
372.9 kW
|
| PTO (claimed): | 416 hp
310.2 kW
|
| Drawbar (tested): | 378.75 hp
282.4 kW
|
| PTO (tested): | 523.60 hp
390.4 kW
|
| Mechanical |
| Chassis: | crawler
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Cab standard with air-conditioning.
|
| Transmission: | 16-speed full power shift
|
| Capacity |
| Fuel: | 330 gal
1249.1 L
|
| Hydraulic system: | 70 gal
264.9 L
|
| Hydraulics |
| Type: | closed center load sensing
|
| Capacity: | 70 gal
264.9 L
|
| Pressure: | 2900 psi
200.0 bar
|
| Rear valves: | 4 to 6
|
| Pump flow: | 43.5 gpm
164.6 lpm
|
| | 59 gpm
223.3 lpm *Optional
|
| SCV flow: | 30 gpm
113.6 lpm
|
| Tractor hitch |
| Rear Type: | IVN
|
| Rear lift: | 19500 lbs
8845 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000 (1.75)
|
| Dimensions & Tracks |
| Wheelbase: | 118.1 inches
299 cm
|
| Weight: | 41000 lbs
18597 kg
|
| 18-inch track |
| Full dimensions and tracks ... |
| MT865 Serial Numbers |
| Location: | Serial number plate on the left side of the tractor frame.
|
| 2002: | BDS20000
|
| 2003: | BDS30000
|
| 2004: | BDS40000
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 160
|
| Batteries: | 4
|
| Battery volts: | 12
|
|
