Challenger MT975E Tractors

Challenger MT975E
Power: 600 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:Challenger (a part of AGCO)
Type:Four-wheel Drive (4WD) tractor
Factory:Jackson, Minnesota, USA
Challenger MT975E Power
Engine:600 hp
447.4 kW
PTO (claimed):425 hp
316.9 kW
Challenger MT975E Engine
Mechanical
Chassis:4x4 articulated 4WD
Final drives:inboard planetary
Differential lock:electro-hydraulic
Steering:articulated power
Brakes:hydraulic wet disc
Cab:Pinnacle View Cab standard with air-conditioning. Auto-Guide 3000
 AgCommand
Transmission:16-speed power shift

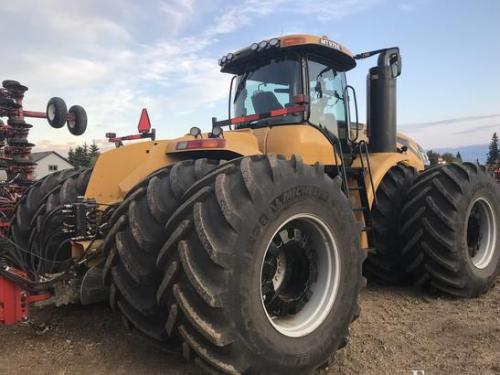

Photos
Challenger MT975E photos...
Hydraulics
Type:closed center pressure-flow compensated
Pressure:2900 psi
200.0 bar
Valves:4 to 6
Pump flow:58 gpm
219.5 lpm
 85 gpm
321.7 lpm *Optional
SCV flow:37 gpm
140.0 lpm
Tractor hitch
Rear lift:19500 lbs
8845 kg
Drawbar:Cat. 5
 Cat. 4*Optional
Dimensions & Tires
Weight:47500 lbs
21546 kg
Front tire:710/70R42
Rear tire:710/70R42
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:300*Twin 150A alternators.
Batteries:4
Battery volts:12
