Navigation: Home > Chery > RK504

Chery RK504 Tractors

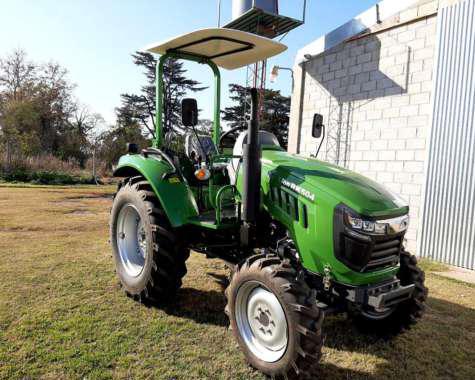

Chery RK504
Power: 50 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:Chery
Type:Utility tractor
Factory:China
Variants
RK500:2WD
RK504:4WD
RK504 Orchard:low-profile
Chery RK504 Power
Engine (gross):50 hp
37.3 kW
PTO (claimed):42.5 hp
31.7 kW
Chery RK504 Engines
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:hydraulic power
Brakes:pneumatic brake optional
Cab:Open operator station. Optional ROPS. Optional canopy. Cab available with optional air-conditioning.
Transmissions:12-speed shuttle
 8-speed gear
Tractor hitch
Control:position, draft, and float control
Rear lift (at 24"/610mm):1911 lbs
866 kg
Drawbar:fixed drawbar
 swinging drawbar optional
Power Take-off (PTO)
Rear PTO:live
Rear RPM:540/760
 540/1000 (optional)
Dimensions & Tires
Wheelbase:78.4 inches
199 cm
Weight:4442 lbs
2014 kg
Front tire:8.3-20
Rear tire:12.4-28
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
