Navigation: Home > Claas > Axion 920

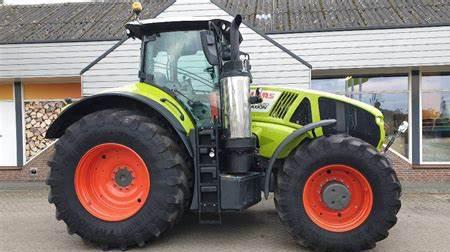

Claas Axion 920 Tractors

Claas Axion 920
Power: 311 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:Claas
Type:Row-Crop tractor
Claas Axion 920 Power
Engine (gross):316.5 hp
236.0 kW
Engine (max):315.1 hp
235.0 kW
Claas Axion 920 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Cab standard with air-conditioning.
Transmission:continuously variable transmission
Hydraulics
Type:load sensing
Pump flow:39.6 gpm
149.9 lpm
 58.1 gpm
219.9 lpm *Optional
Tractor hitch
Rear Type:III/IV
Rear lift (at ends):16579 lbs
7520 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000
 540E/1000*Optional
 1000E/1000*Optional
Front RPM:1000
Dimensions & Tires
Wheelbase:124 inches
314 cm
Weight:28307 lbs
12840 kg
Front tire:620/75R30
Rear tire:710/85R38
Full dimensions and tires ...
