Cockshutt 1355 Tractors

Cockshutt 1355
Power: 56 hp
Date of manufacture :
1969 - 1971
Production
Manufacturer:Cockshutt (a part of White)
Type:Utility tractor
Original price:$5,500 (1971 )
Cockshutt 1355 Power
PTO (claimed):51 hp
38.0 kW
Cockshutt 1355 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:manual
Steering:power*Optional
Brakes:mechanical band
Cab:Open operator station.
Transmissions:8-speed gear
 12-speed creeper

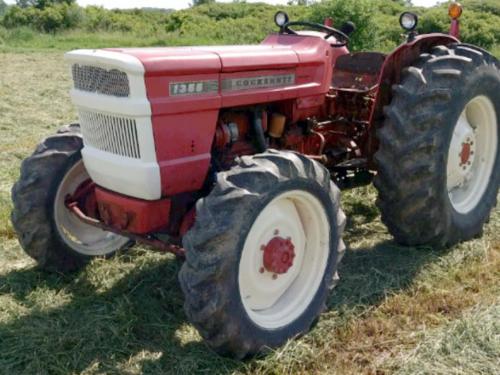

Photos
Cockshutt 1355 photos...
Capacity
Fuel:14.25 gal
53.9 L
Hydraulic system:4.75 gal
18.0 L
Hydraulics
Capacity:4.75 gal
18.0 L
Pressure:2133 psi
147.1 bar
Pump flow:5.76 gpm
21.8 lpm
 12 gpm
45.4 lpm *Optional, additional pump.
Tractor hitch
Rear Type:II/I
Control:position and draft control
Rear lift:3100 lbs
1406 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Dimensions & Tires
2WD Wheelbase:81.5 inches
207 cm
4WD Wheelbase:78 inches
198 cm
Weight:4410 to 4940 pounds
Front tire:6.00-16
Rear tire:14.9-28
Full dimensions and tires ...
1355 Serial Numbers
1969:505-287
1970:512-698
1971:523-254
Final:526-640

how to read serial numbers...

Electrical
Charging system:alternator
Charging amps:42
Batteries:2
Battery volts:6
