Deere 1640 Tractors

Deere 1640
Power: 62 hp
Date of manufacture :
1979 - 1987
Production
Manufacturer:John Deere
Type:Utility tractor
Factory:Mannheim, Baden-Württemberg, Germany
John Deere 1640 Power
Engine:62 hp
46.2 kW
PTO (claimed):54 hp
40.3 kW
John Deere 1640 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Final drives:planetary
Steering:power
Brakes:hydraulic disc
Cab:Four-post ROPS. Cab available with heater. SoundGard (SG2) cab available after 1981.
Transmissions:8-speed
 16-speed

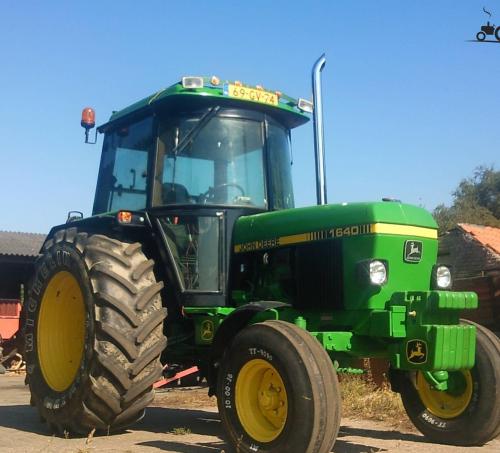

Photos
John Deere 1640 photos...
Capacity
Fuel:25.1 gal
95.0 L
Hydraulic system:14.5 gal
54.9 L
Hydraulics
Type:closed center constant pressure
Capacity:14.5 gal
54.9 L
Pressure:2466 psi
170.0 bar
Pump flow:12.4 gpm
46.9 lpm
Tractor hitch
Rear Type:II
Rear lift:6768 lbs
3069 kg
Power Take-off (PTO)
Rear RPM:540
Engine RPM:540@2400
Dimensions & Tires
2WD Wheelbase:89.7 inches
227 cm
4WD Wheelbase:80 inches
203 cm
Weight:7409 to 8004 pounds
Front tire:7.50-18
2WD Rear tire:13.6/12-38
Full dimensions and tires ...
1640 Serial Numbers
1980:358998
1981:393048
1982:433037

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Charging amps:55
Batteries:2
Battery volts:12
