| Production |
| Manufacturer: | John Deere
|
| Type: | Utility tractor
|
| Factory: | Augusta, Georgia, USA
|
| Original price: | $64,481 (2021 )
|

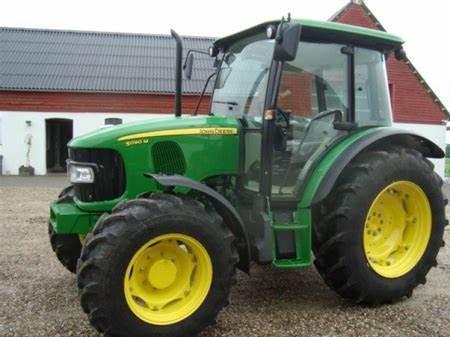

| John Deere 5090M Power |
| Engine (gross): | 89.2 hp
66.5 kW
|
| PTO (claimed): | 75 hp
55.9 kW
|
| PTO (tested): | 83.74 hp
62.4 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | inboard planetary
|
| Differential lock: | electro-hydraulic
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Isolated open operator station with foldable two-post ROPS. Optional premium open station features extended fenders and integral work lights. Standard and premium cabs available with air-conditioning.
|
| Transmissions: | 12-speed partially synchronized
|
| | 16-speed power shuttle
|
| | 32-speed two-speed power shift
|
| Hydraulics |
| Type: | open center
|
| Pump flow: | 18.4 gpm
69.6 lpm
|
| Total flow: | 24.7 gpm
93.5 lpm
|
| Steering flow: | 6.3 gpm
23.8 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | lower-link draft sensing
|
| Rear lift (at 24"/610mm): | 5159 lbs
2340 kg
|
| | 5954 lbs
2700 kg *Optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Rear RPM: | 540/540E
|
| | 540/540E/1000*Optional
|
| Dimensions & Tires |
| Wheelbase: | 92.5 inches
234 cm
|
| Weight: | 8140 to 9185 pounds
|
| Front tire: | 12.4R24
|
| 2WD Rear tire: | 18.4R30
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Battery volts: | 12
|
|
