Navigation: Home > Deere > 5500

Deere 5500 Tractors

Deere 5500
Power: 83 hp
Date of manufacture :
1996 - 1997
Production
Manufacturer:John Deere
Type:Utility tractor
Factory:Augusta, Georgia, USA
Original price:$28,000 (1997)
Variants
5500N:narrow, orchard tractor
John Deere 5500 Power
Engine (gross):83.2 hp
62.0 kW
PTO (claimed):73 hp
54.4 kW
Drawbar (tested):63.11 hp
47.1 kW
PTO (tested):74.04 hp
55.2 kW
John Deere 5500 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD (optional)
Differential lock:mechanical standard
Steering:hydrostatic power
Brakes:differential hydraulic wet disc
Cab:Two-post folding ROPS. Cab optional with air-conditioning.
Transmissions:9-speed unsynchronized gear
 9-speed partially synchronized
 12-speed power shuttle
Photos

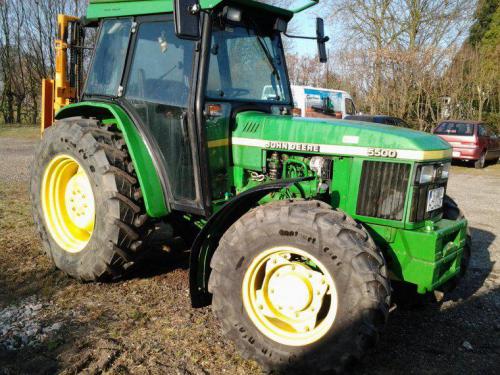

John Deere 5500 photos...
Hydraulics
Type:open center
Pressure:2750 psi
189.6 bar
Valves:1 to 3
Pump flow:16.4 gpm
62.1 lpm
Total flow:23.2 gpm
87.8 lpm
Steering flow:6.8 gpm
25.7 lpm
Tractor hitch
Rear Type:II/I
Control:position control with top-link draft sensing
Rear lift (at 24"/610mm):3,374 lbs
1530 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
Dimensions & Tires
Wheelbase:85.7 inches
217 cm
Weight:5,780 lbs
2621 kg
Front tire:7.50-16
Rear tire:16.9-30 (2WD)
5500 Serial Numbers
Location:On main right side of main tractor frame, near front axle.
1996:550003
1997:650000

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Battery volts:12
