| Production |
| Manufacturer: | John Deere
|
| Type: | Row-Crop tractor
|
| Factory: | Waterloo, Iowa, USA
|
| Original price: | $50,000 (1996 )
|
| John Deere 7200 Power |
| PTO (claimed): | 92 hp
68.6 kW
|
| Drawbar (tested): | 85.86 hp
64.0 kW
|
| PTO (tested): | 97.88 hp
73.0 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | independent hydraulic wet disc
|
| Cab: | Cab standard with air-conditioning.
|
| Transmissions: | 12-speed fully synchronized
|
| | 16-speed four-speed power shift
|
| Photos |

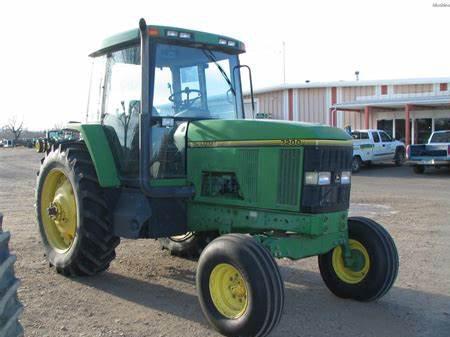

| | John Deere 7200 photos... |
| Hydraulics |
| Type: | closed center
|
| Valves: | 2 or 3
|
| Tractor hitch |
| Rear Type: | 2/3N
|
| Rear lift (at 24"/610mm): | 6,858 lbs
3110 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 112.1 inches
284 cm
|
| Weight: | 12678 lbs
5750 kg
|
| Front tire: | 10.00x16
|
| Rear tire: | 18.4x38
|
| Full dimensions and tires ... |
| 7200 Serial Numbers |
| 1994: | 1001
|
| 1995: | 2595
|
| 1996: | 4001
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
