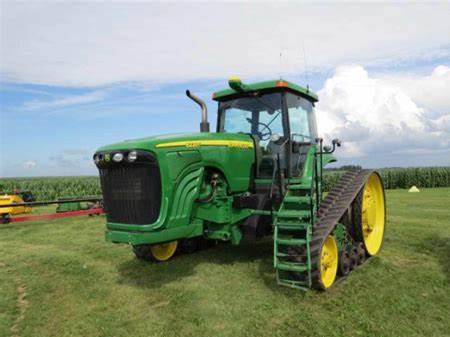

Deere 8220T Tractors

Deere 8220T
Power: 233 hp
Date of manufacture :
2002 - 2005
Production
Manufacturer:John Deere
Type:Agricultural Crawler tractor
Factory:Waterloo, Iowa, USA
Variants
8220:wheeled tractor
8220T:crawler
John Deere 8220T Power
Engine (gross):233 hp
173.7 kW
Engine (net):225 hp
167.8 kW
Engine (max):256 hp
190.9 kW
PTO (claimed):190 hp
141.7 kW
Drawbar (tested):158.81 hp
118.4 kW
PTO (tested):216.32 hp
161.3 kW
John Deere 8220T Engine
Mechanical
Chassis:crawler
Steering:electro-hydraulic power
Brakes:hydraulic wet disc
Cab:Cab standard.
Transmission:16-speed full power shift
Capacity
Fuel:130 gal
492.1 L
Hydraulic system:65 gal
246.0 L
Hydraulics
Type:closed center pressure flow compensated (PFC)
Capacity:65 gal
246.0 L
Pressure:2900 psi
200.0 bar
Valves:5
Pump flow:30 gpm
113.6 lpm
Total flow:33.5 gpm
126.8 lpm
 42.5 gpm
160.9 lpm (optional)
Tractor hitch
Rear Type:III/IIIN
Rear lift:15,180 lbs
6885 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000 (1-3/4)
Dimensions & Tracks
Wheelbase:89 inches
226 cm
 120 inches
304 cm (wide track opt)
Weight:25,950 lbs
11770 kg
16,18,24 or 30 in tracks
Full dimensions and tracks ...
8220T Serial Numbers
Location:Rear of tractor
Electrical
Ground:negative
Charging system:alternator
Charging amps:150
Batteries:2
Battery CCA:925
Battery volts:12
