Deere 8430 Tractors

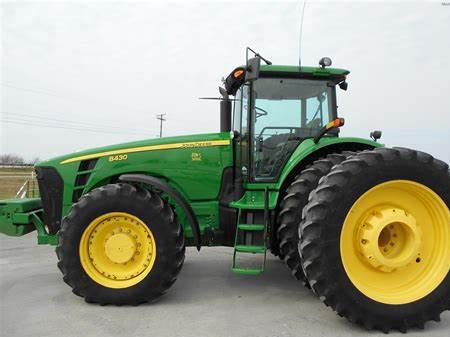

Deere 8430
Power: 305 hp
Date of manufacture :
2006 - 2009
Production
Manufacturer:John Deere
Type:Row-Crop tractor
Factory:Waterloo, Iowa, USA
Variants
8430:row-crop tractor
8430T:crawler tractor
John Deere 8430 Power
Engine (gross):305 hp
227.4 kW
Engine (max):330 hp
246.1 kW
PTO (claimed):250 hp
186.4 kW
Drawbar (tested):223.57 hp
166.7 kW
PTO (tested):289.26 hp
215.7 kW
John Deere 8430 Engine
Mechanical
Chassis:4x4 Independent Link Suspension (ILS) MFWD 4WD
 4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:CommandView cab standard.
Transmission:16-speed full power shift
Photos
John Deere 8430 photos...
Capacity
Fuel:180 gal
681.3 L
Hydraulic system:9.5 gal
36.0 L
 14.5 gal
54.9 L (with aux reservoir)
Hydraulics
Type:closed center PFC
Capacity:9.5 gal
36.0 L
 14.5 gal
54.9 L (with aux reservoir)
Valves:3 to 5
Pump flow:31.7 gpm
120.0 lpm
Total flow:44 gpm
166.5 lpm
 60 gpm
227.1 lpm (optional)
Tractor hitch
Rear Type:III
 IV (optional)
Rear lift:17,300 lbs
7847 kg
 18,300 lbs
8300 kg (optional)
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000
 540/1000 (optional)
Engine RPM:540@1817
1000@2000
Dimensions & Tires
Wheelbase:118.9 inches
302 cm (ILS)
 120.1 inches
305 cm (MFWD)
Weight:24825 to 25791 pounds
Full dimensions and tires ...
8430 Serial Numbers
Location:Rear of tractor near PTO
photo of 8430 serial number

Electrical
Ground:negative
Charging system:alternator
Charging amps:200
Batteries:2
Battery CCA:925
Battery volts:12
