Navigation: Home > Deutz > D 5506

Deutz D 5506 Tractors

Deutz D 5506
Power: 52 hp
Date of manufacture :
1967 - 1974
Production
Manufacturer:Deutz
Type:Utility tractor
Variants
D5506:2WD
D5506A:4WD
Deutz D 5506 Power
Engine:52 hp
38.8 kW
Deutz D 5506 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Cab:Open operator station.
Transmissions:8-speed unsynchronized gear
 8-speed synchromesh
 12-speed synchromesh with creeper

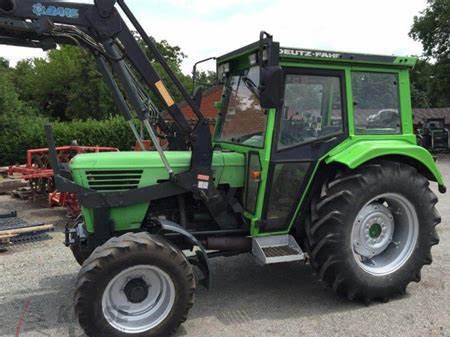

Photos
Deutz D 5506 photos...
Hydraulics
Pump flow:8.6 gpm
32.6 lpm
Tractor hitch
Rear lift:4189 lbs
1900 kg
Power Take-off (PTO)
Rear RPM:540, 1000
Dimensions & Tires
Wheelbase:83.86 inches
213 cm
Weight:4730 to 5500 pounds
Front tire:7.50-16
Rear tire:12.4-36
Full dimensions and tires ...
