Deutz D 7506 Tractors

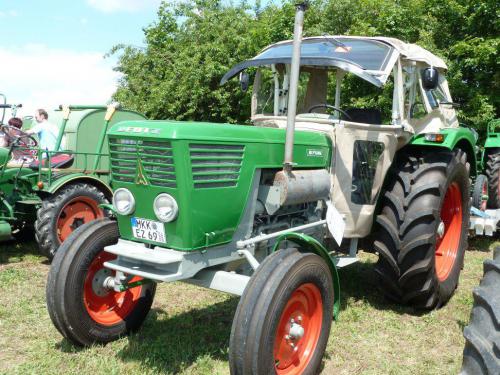

Deutz D 7506
Power: 75 hp
Date of manufacture :
1968 - 1970
Production
Manufacturer:Deutz
Type:Utility tractor
Variants
D7506:2WD
D7506A:4WD
Deutz D 7506 Power
Engine:75 hp
55.9 kW
Deutz D 7506 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Cab:Open operator station.
Transmissions:12-speed synchromesh
 16-speed creeper
Hydraulics
Type:open center
Pump flow:9.2 gpm
34.8 lpm
Tractor hitch
Rear Type:II
Rear lift:6615 lbs
3000 kg
Power Take-off (PTO)
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:100.4 inches
255 cm
Weight:6647 to 7441 pounds
Front tire:7.50-20
2WD Rear tire:18.4/15-30
Full dimensions and tires ...
