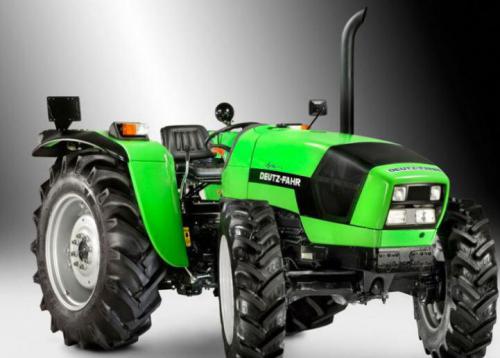

Deutz-Fahr Agrolux 75 Tractors
 |
|
Power: 72 hp
Date of manufacture : 2008 - 2018 |
| Production |
| Manufacturer: | Deutz-Fahr
|
| Type: | Utility tractor
|
| Factory: | Turkey
|
| Variants |
| Agrolux 75: | 8/12 speed
|
| Agrolux 320: | 15-speed shuttle
|
| Lamborghini Rekord 75 | | Deutz-Fahr Agrolux 75 | | SAME Tiger 75 |
| Deutz-Fahr Agrolux 75 Power |
| Engine (gross): | 72 hp
53.7 kW
|
| Deutz-Fahr Agrolux 75 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD (optional)
|
| Differential lock: | mechanical front and rear
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic
|
| Cab: | Two-post foldable ROPS. Canopy available.
|
| Transmissions: | 8-speed partially synchronized
|
| | 12-speed partially synchronized
|
| Hydraulics |
| Type: | open center
|
| Valves: | 2 to 4
|
| Pump flow: | 8.72 gpm
33.0 lpm
|
| Steering flow: | 4.5 gpm
17.0 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Rear lift (at ends): | 6,614 lbs
3000 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | dry mechanical
|
| Rear RPM: | 540/540E (1.375)
|
| Dimensions & Tires |
| Wheelbase: | 80.2 inches
203 cm (2WD)
|
| | 77.8 inches
197 cm (4WD)
|
| Weight: | 5,247 lbs
2380 kg
|
| Front tire: | 7.50R16
|
| Rear tire: | 16.9R28 (2WD)
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 65
|
| Charging volts: | 12
|
| Battery volts: | 12
|
| Battery AH: | 100
|
|
