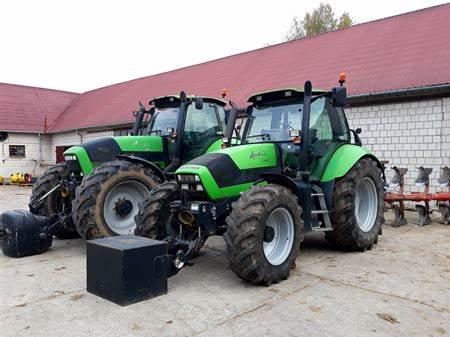

Deutz-Fahr Agrotron 150.7 Tractors
 |
|
Power: 163 hp
Date of manufacture : 2005 - 2007 |
| Production |
| Manufacturer: | Deutz-Fahr
|
| Deutz-Fahr Agrotron 150.7 Power |
| Engine (gross): | 163.6 hp
122.0 kW
|
| Deutz-Fahr Agrotron 150.7 Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Cab standard with air-conditioning.
|
| Transmissions: | 24-speed four-speed power shift
|
| | 40-speed creeper
|
| Hydraulics |
| Type: | open center
|
| | closed center*Optional
|
| Pressure: | 2901 psi
200.0 bar
|
| Valves: | 2 to 4
|
| Pump flow: | 21.9 gpm
82.9 lpm (open)
|
| | 31.7 gpm
120.0 lpm (closed)
|
| Tractor hitch |
| Rear Type: | III/II
|
| Rear lift: | 20283 lbs
9200 kg
|
| Front Hitch: | II*Optional
|
| Front lift: | 8818 lbs
3999 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic wet disc
|
| Rear RPM: | 540/1000 (1.375)
|
| Engine RPM: | 540@2200
540E@1600
1000@2200
1000E@1600
|
| Front PTO: | independent*Optional
|
| Clutch: | 1000:2130
|
| Front RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 108.9 inches
276 cm
|
| Weight: | 12963 lbs
5880 kg
|
| Front tire: | 16.9R28
|
| Rear tire: | 20.8R38
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 95
|
| Battery volts: | 12
|
| Battery AH: | 143
|
| | 170*Optional
|
|
