Navigation: Home > Deutz-Fahr > M610

Deutz-Fahr M610 Tractors

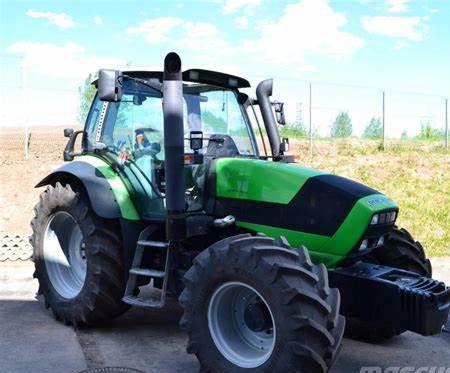

Deutz-Fahr M610
Power: 132 hp
Date of manufacture :
2007 - 2009
Production
Manufacturer:Deutz-Fahr
Deutz-Fahr M610 Power
Engine:132 hp
98.4 kW
Deutz-Fahr M610 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Cab standard with air-conditioning.
Transmissions:24-speed partial power shift
 40-speed creeper
Capacity
Fuel:71.3 gal
269.9 L
Hydraulic system:10.6 gal
40.1 L
Hydraulics
Type:open center
 load sensing*Optional
Capacity:10.6 gal
40.1 L
Pressure:2900 psi
200.0 bar
Rear valves:4
Pump flow:21.9 gpm
82.9 lpm *Open center
 31.7 gpm
120.0 lpm *Load sensing
Steering flow:11 gpm
41.6 lpm
Steering press.:2600 psi
179.3 bar
Tractor hitch
Rear Type:III/II
Control:position and draft control
Rear lift:13640 lbs
6187 kg
 20240 lbs
9180 kg *Optional
Front Hitch:II
Front lift:8800 lbs
3991 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Engine RPM:540@1995
540E@1610
1000@1995
1000E@1610
Front PTO:independent*Optional
Front RPM:1000
Engine RPM:1000@1960
Dimensions & Tires
Wheelbase:104.3 inches
264 cm
Weight:12040 lbs
5461 kg
Front tire:480/70R24
Rear tire:520/70R38
Full dimensions and tires ...
Electrical
Charging system:alternator
Charging amps:150
Battery volts:12
Battery AH:143
 190*Optional
