Farmall 1466 Tractors

Farmall 1466
Power: 147 hp[P]
Date of manufacture :
1971 - 1976
Production
Manufacturer:Farmall (a part of International Harvester)
Type:Row-Crop tractor
Total built:25,264
Original price:$23,600 (1976)
Farmall 1466 Power
PTO (claimed):133 hp
99.2 kW
Drawbar (tested):123.20 hp
91.9 kW
PTO (tested):145.77 hp
108.7 kW
Farmall 1466 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:independent hydrostatic dry disc
Cab:Cab optional with heat and A/C
Transmissions:8-speed
 16-speed

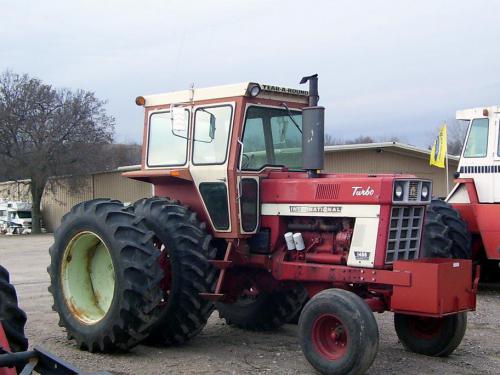

Photos
Farmall 1466 photos...
Capacity
Fuel:42 gal
159.0 L
Hydraulic system:22 gal
83.3 L
Hydraulics
Type:open center
Capacity:22 gal
83.3 L
Pressure:2000 psi
137.9 bar
Valves:1
Pump flow:12 gpm
45.4 lpm
Total flow:24 gpm
90.8 lpm
Steering flow:9 gpm
34.1 lpm
Steering press.:1550 psi
106.9 bar
Tractor hitch
Rear Type:3/2
Rear lift (at 24"/610mm):5,600 lbs
2540 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000
Dimensions & Tires
Wheelbase:105 inches
266 cm
Weight:13,480 lbs
6114 kg
Front tire:11L-15
Rear tire:18.4-38
Full dimensions and tires ...
1466 Serial Numbers
Location:Clutch housing, left side
1971:7101
1972:10408
1973:15533
1974:19746
1975:25404
1976:29516

how to read serial numbers...

Electrical
Charging amps:32
Batteries:2
Battery volts:6
Battery AH:172
