Farmall 230 Tractors

Farmall 230
Power: 27 hp[P]
Date of manufacture :
1956 - 1958
Production
Manufacturer:Farmall (a part of International Harvester)
Type:Row-Crop tractor
Factory:Louisville, Kentucky, USA
Original price:$2,100 (1958 )
Farmall 230 Power
Drawbar (claimed):20.0 hp
14.9 kW
PTO (claimed):24.95 hp
18.6 kW
Drawbar (tested):25.00 hp
18.6 kW
Belt (tested):28.06 hp
20.9 kW
Farmall 230 Engine
Mechanical
Chassis:4x2 2WD
Steering:manual
Brakes:differential mechanical dry disc
Cab:Open operator station.
Transmissions:4-speed sliding gear
 4-speed creeper
Photos

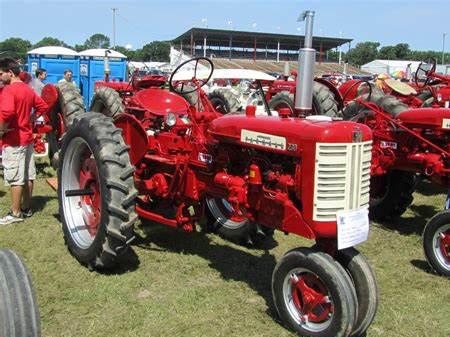

Farmall 230 photos...
Power Take-off (PTO)
Rear RPM:540
Dimensions & Tires
Weight:3440 lbs
1560 kg
Front tire:5.00-15
Rear tire:11.2-36
Full dimensions and tires ...
230 Serial Numbers
Location:Right side of clutch housing
photo of 230 serial number

1956:501
1957:815
1958:6827
Final:7671

how to read serial numbers...

Belt Pulley
Diameter:8 inches
20 cm
Width:6 inches
15 cm
RPM:1,487
Speed:3,114 ft/min
949.15 meters/min
