Navigation: Home > Farmall > Super MD

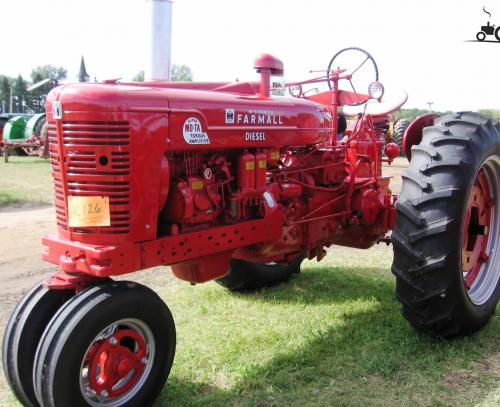

Farmall Super MD Tractors
|
|
Power: 52 hp[P]
Date of manufacture : 1952 - 1954 |
Production |
Manufacturer: | Farmall (a part of International Harvester)
|
Type: | Row-Crop tractor
|
Factory: | Rock Island, Illinois, USA
|
Total built: | 5,199
|
| 89 (Super MDV)
|
Variants |
Super M: | gasoline engine
|
Super MD-TA: | Torque Amplifier transmission
|
Farmall Super MD Power |
Drawbar (claimed): | 42 hp 31.3 kW
|
PTO (claimed): | 47.5 hp 35.4 kW
|
Drawbar (tested): | 39.52 hp 29.5 kW
|
Belt (tested): | 46.73 hp 34.8 kW
|
Mechanical |
Chassis: | 4x2 2WD
|
Brakes: | differential mechanical disc
|
Cab: | Open operator station.
|
Transmissions: | 5-speed gear
|
| 10-speed partial power shift
|
Photos |
| Farmall Super MD photos... |
Hydraulics |
Type: | IH Lift-All
|
Tractor hitch |
Type: | IH Fast Hitch
|
Power Take-off (PTO) |
Rear RPM: | 540
|
Dimensions & Tires |
Wheelbase: | 95.75 inches 243 cm (tricycle)
|
| 99.75 inches 253 cm (wide)
|
Weight: | 5725 to 5770 pounds
|
Front tire: | 6.00x16
|
Rear tire: | 13.00x38
|
Full dimensions and tires ... |
Super MD Serial Numbers |
1952: | 501
|
1953: | 12516
|
1954: | 51995
|
Final: | 52627
|
1952: | 501 (SMDV)
|
1953: | 12516 (SMDV)
|
Final: | 50464 (SMDV)
|
how to read serial numbers...
|
Electrical |
Ground: | positive
|
Batteries: | 2
|
Battery volts: | 6
|
|
