Fendt 1165 MT Tractors

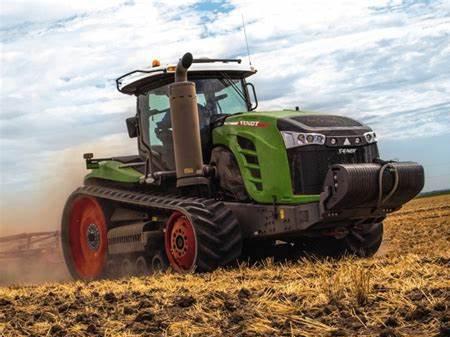

Fendt 1165 MT
Power: 590 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:Fendt (a part of AGCO)
Type:Agricultural Crawler tractor
Variants
Challenger MT875E
Fendt 1165 MT Power
Engine (gross):590.1 hp
440.0 kW
Engine (max):637 hp
475.0 kW
Fendt 1165 MT Engine
Mechanical
Chassis:crawler
Cab:Cab standard with air-conditioning.
Transmission:16-speed full power shift
Hydraulics
Type:closed center pressure flow compensated
Pressure:2901 psi
200.0 bar
Rear valves:6*Optional
Pump flow:59.2 gpm
224.1 lpm
 84.8 gpm
321.0 lpm *Optional
SCV flow:37 gpm
140.0 lpm
Tractor hitch
Rear Type:IV/III
Rear lift:30865 lbs
14000 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000
Engine RPM:1000@1980
Dimensions & Tracks
Wheelbase:118.1 inches
299 cm
Weight:42692 lbs
19365 kg
27.5-inch tracks
Full dimensions and tracks ...
Electrical
Ground:negative
Battery volts:12
