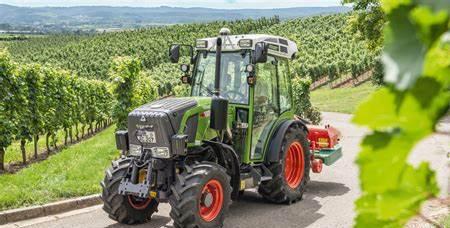

Fendt 209 Vario Tractors

Fendt 209 Vario
Power: 89 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:Fendt (a part of AGCO)
Type:Utility tractor
Fendt 209 Vario Power
Engine (gross):89.9 hp
67.0 kW
Engine (net):79.1 hp
59.0 kW
Engine (max):93.9 hp
70.0 kW
Fendt 209 Vario Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Cab standard with heater. Air-conditioning available.
Transmission:continuously-variable transmission
Hydraulics
Pressure:2900 psi
200.0 bar
Rear valves:4*Optional
Mid valves:2*Optional
Pump flow:12.7 gpm
48.1 lpm
 20.1 gpm
76.1 lpm *Optional tandem pumps.
Tractor hitch
Control:position and draft control
Rear lift:9268 lbs
4203 kg
Front lift:5490 lbs
2490 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/540E/1000
 540/ground/1000
Engine RPM:540@1900
540E@1560
1000@1900
Front PTO:independent*Optional
Front RPM:540
 1000
Dimensions & Tires
Wheelbase:90.3 inches
229 cm
Weight:8532 lbs
3870 kg
Front tire:380/70R24
Rear tire:480/70R34
Electrical
Ground:negative
Charging system:alternator
Charging amps:120
Charging volts:14
Battery volts:12
Battery AH:90
