Navigation: Home > Fendt > 516 Vario

Fendt 516 Vario Tractors

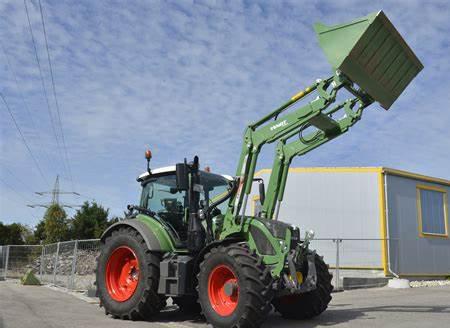

Fendt 516 Vario
Power: 160 hp
Date of manufacture :
2012 - 2022
Production
Manufacturer:Fendt (a part of AGCO)
Type:Utility tractor
Fendt 516 Vario Power
Engine (gross):160.9 hp
120.0 kW
Engine (net):147.5 hp
110.0 kW
Engine (max):169 hp
126.0 kW
Fendt 516 Vario Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Trailer brakes:pneumatic*Optional
Cab:Cab standard with air-conditioning.
Transmission:continuously variable transmission
Hydraulics
Type:load sensing
Pressure:2900 psi
200.0 bar
Rear valves:4 or 5
Front valves:1 or 2
Pump flow:19.8 gpm
74.9 lpm
 29.1 gpm
110.1 lpm *Optional
 41.7 gpm
157.8 lpm *Optional
Tractor hitch
Control:position and draft control
Rear lift:17152 lbs
7780 kg
Front lift:7540 lbs
3420 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/540E/1000
 540E/1000/1000E
Front PTO:independent*Optional
Front RPM:1000
Dimensions & Tires
Wheelbase:100.8 inches
256 cm
Weight:14110 lbs
6400 kg
Front tire:540/65R28
Rear tire:650/65R38
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
