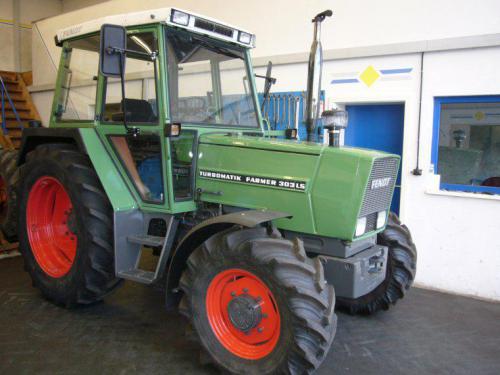

Fendt Farmer 303LS Tractors
|
|
Power: 52 hp
Date of manufacture : 1982 - 1985 |
Production |
Manufacturer: | Fendt
|
Type: | Utility tractor
|
Fendt Farmer 303LS Power |
Engine: | 52 hp 38.8 kW
|
Fendt Farmer 303LS Engine |
Mechanical |
Chassis: | 4x2 2WD
|
| 4x4 MFWD 4WD
|
Steering: | power
|
Brakes: | hydraulic drum
|
Cab: | Cab standard with heat. Air-conditioning optional.
|
Transmission: | 15-speed synchromesh
|
Hydraulics |
Type: | open center
|
Pump flow: | 9.8 gpm 37.1 lpm
|
Steering flow: | 9.25 gpm 35.0 lpm
|
Tractor hitch |
Rear lift: | 4718 lbs 2140 kg
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 540/1000
|
| 540/750
|
| 540/750/1000
|
Dimensions & Tires |
2WD Wheelbase: | 90 inches 228 cm
|
4WD Wheelbase: | 86.3 inches 219 cm
|
Weight: | 7154 to 7441 pounds
|
Front tire: | 10.00-16
|
2WD Rear tire: | 13.6R36
|
Electrical |
Ground: | negative
|
Charging system: | alternator
|
Charging amps: | 33
|
Battery volts: | 12
|
Battery AH: | 88
|
|
