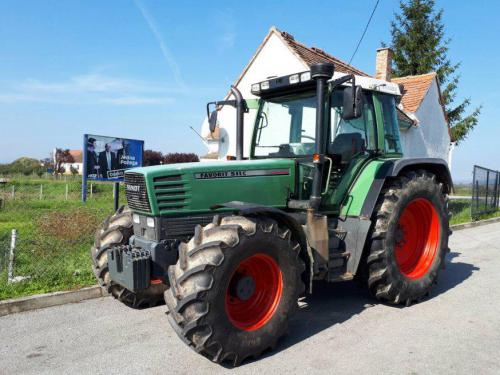

Fendt Favorit 511C Tractors
 |
|
Power: 115 hp
Date of manufacture : 1994 - 1999 |
| Production |
| Manufacturer: | Fendt
|
| Fendt Favorit 511C Power |
| Engine: | 115 hp
85.8 kW
|
| Fendt Favorit 511C Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | electro-hydraulic front and rear
|
| Steering: | power
|
| Brakes: | hydraulic disc
|
| Cab: | Cab standard with heater. Air-conditioning optional.
|
| Transmission: | 44-speed four-speed power shift
|
| Hydraulics |
| Pump flow: | 26.9 gpm
101.8 lpm
|
| Tractor hitch |
| Rear Type: | III/II
|
| Control: | lower-link draft sensing
|
| Rear lift: | 14237 lbs
6457 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Rear RPM: | 540/750/1000/1400
|
| Front PTO: | independent*Optional
|
| Front RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 101.9 inches
258 cm
|
| Weight: | 11684 lbs
5299 kg
|
| Front tire: | 420/70R24
|
| Rear tire: | 480/70R38
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Battery volts: | 12
|
| Battery AH: | 135
|
|
