Fiat 980 Tractors

Fiat 980
Power: 98 hp
Date of manufacture :
1979 - 1984
Production
Manufacturer:Fiat
Fiat 980 Power
Engine:98 hp
73.1 kW
Fiat 980 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Open operator station. ROPS and cab available.
Transmissions:12-speed synchronized
 16-speed creeper
Photos

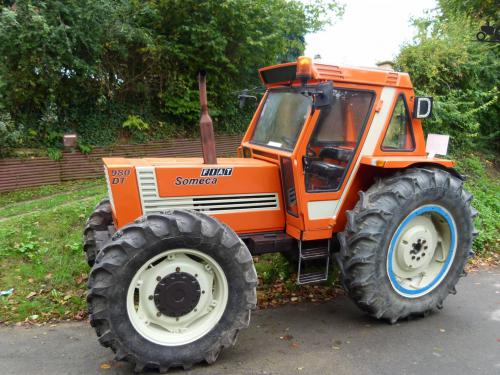

Fiat 980 photos...
Hydraulics
Type:open center
Pump flow:10.9 gpm
41.3 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift:7056 lbs
3200 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000 (1.375)
Engine RPM:540@2124
1000@2400
Dimensions & Tires
Wheelbase:100 inches
254 cm
Weight:7628 to 8289 pounds
Front tire:7.50-20
2WD 12.4/11-28:16.9/14-38 4WD} Rear tire:16.9/14-38
Full dimensions and tires ...
Electrical
Charging system:alternator
Battery volts:12
