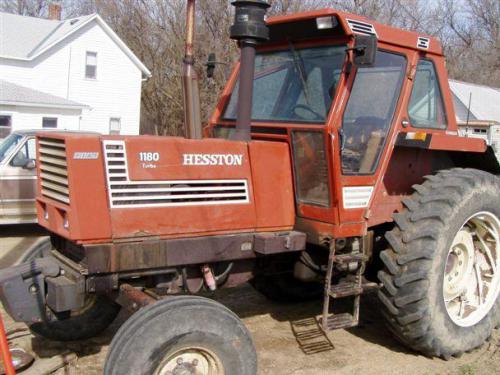

Fiat-Hesston 1180 Tractors
 |
|
Power: 113 hp
Date of manufacture : 1981 - 1984 |
| Production |
| Manufacturer: | Hesston (a part of Fiat)
|
| Type: | Row-Crop tractor
|
| Original price: | $33,500 (1984)
|
| Hesston 1180 Power |
| PTO (claimed): | 102 hp
76.1 kW
|
| Drawbar (tested): | 93.68 hp
69.9 kW
|
| PTO (tested): | 107.48 hp
80.1 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD optional
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic disc
|
| Cab: | Supercomfort cab standard with air conditioning
|
| Transmissions: | 12-speed
|
| | 24-speed
|
| Hydraulics |
| Type: | open center
|
| Pressure: | 2450 psi
168.9 bar
|
| Valves: | 2
|
| Pump flow: | 13.3 gpm
50.3 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| | IIIN optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 108.3 inches
275 cm (2WD)
|
| | 105.3 inches
267 cm (4WD)
|
| Weight: | 11800 to 13100 pounds
|
| Front tire: | 11.00-16
|
| Rear tire: | 18.4-38
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 65
|
|
