Fiat-Hesston 55-66 Tractors
 |
|
Power: 55 hp
Date of manufacture : 1985 - 1989 |
| Production |
| Manufacturer: | Hesston (a part of Fiat)
|
| Type: | Utility tractor
|
| Original price: | $17,400 (1990 )
|
| Variants |
| 55-66: | utility 2WD
|
| 55-66DT: | utility 4WD
|
| Hesston 55-66 Power |
| Engine: | 55 hp
41.0 kW
|
| Drawbar (claimed): | 38 hp
28.3 kW
|
| PTO (claimed): | 45.8 hp
34.2 kW
|
| Drawbar (tested): | 38.39 hp
28.6 kW
|
| PTO (tested): | 45.78 hp
34.1 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | mechanical wet disc
|
| Cab: | Four-post ROPS. Canopy optional.
|
| Transmissions: | 12-speed partially synchronized
|
| | 12-speed mechanical shuttle
|
| | 20-speed creeper
|
| Photos |

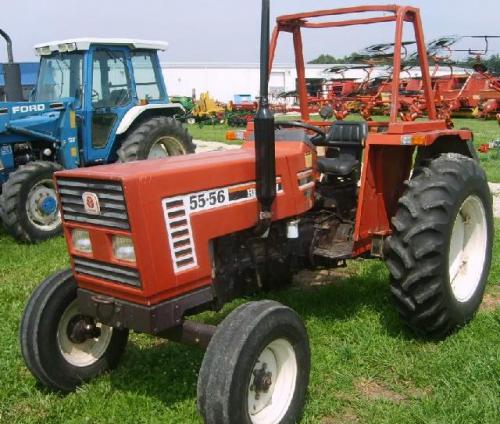

| | Hesston 55-66 photos... |
| Hydraulics |
| Type: | open center
|
| Pressure: | 2700 psi
186.2 bar
|
| Valves: | 0 to 3
|
| Total flow: | 11 gpm
41.6 lpm
|
| Tractor hitch |
| Rear Type: | I/II
|
| Control: | position and lower-link draft control
|
| Rear lift: | 3920 lbs
1778 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/ground
|
| Dimensions & Tires |
| 2WD Wheelbase: | 85.6 inches
217 cm
|
| 4WD Wheelbase: | 83.4 inches
211 cm
|
| Weight: | 4851 to 5402 pounds
|
| Front tire: | 6.50-16
|
| 2WD Rear tire: | 13.6-28
|
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 33
|
| Battery volts: | 12
|
|
