Ford 1100 Tractors

Ford 1100
Power: 12 hp
Date of manufacture :
1979 - 1982
Production
Distributor:Ford
Manufacturer:Shibaura
Type:Compact Utility tractor
Factory:Japan
Original price:$5,609 (1982 )
Ford 1100 Power
Engine (gross):13 hp
9.7 kW
Engine:12.5 hp
9.3 kW
PTO (claimed):11 hp
8.2 kW
Ford 1100 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:manual
Brakes:differential mechanical drum
Cab:Two-post ROPS.
Transmission:10-speed
Photos

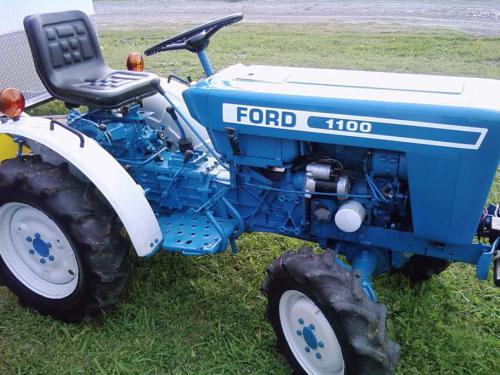

Ford 1100 photos...
Capacity
Fuel:3.5 gal
13.2 L
Hydraulic system:5 gal
18.9 L
Hydraulics
Type:open center
Capacity:5 gal
18.9 L
Tractor hitch
Rear Type:I
Rear lift (at ends):881 lbs
399 kg
Power Take-off (PTO)
Rear PTO:transmission
Rear RPM:540
Front PTO:optional
Dimensions & Tires
Wheelbase:48 inches
121 cm
Weight:1231 to 1344 pounds
Front tire:4.00-12
Rear tire:7.00-16
1100 Serial Numbers
Location:Above front axle on left side
1979:U125001
1980:U127591
1981:U129066
1982:U130665
1983:U131359

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Charging amps:20
Battery volts:12
Battery AH:72
