Ford 5600 Tractors

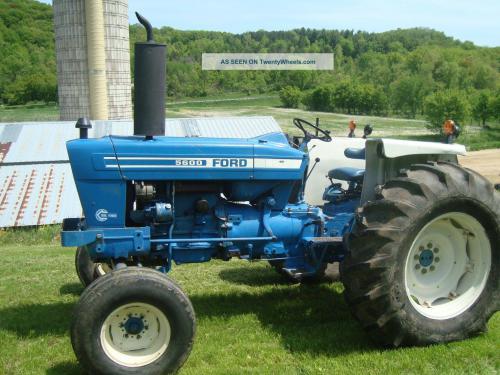

Ford 5600
Power: 75 hp
Date of manufacture :
1982 - 1984
Production
Manufacturer:Ford
Factory:São Bernardo do Campo, Brazil
Ford 5600 Power
Engine:75 hp
55.9 kW
PTO (claimed):65 hp
48.5 kW
Ford 5600 Engine
Mechanical
Chassis:4x2 2WD
Differential lock:mechanical rear
Steering:mechanical
 hydrostatic power*Optional
Brakes:wet disc
Cab:Open operator station.
Transmission:8-speed
Capacity
Fuel:21.5 gal
81.4 L
Hydraulic system:14 gal
53.0 L
Hydraulics
Type:open center
Capacity:14 gal
53.0 L
Pressure:2646 psi
182.4 bar
Pump flow:9.7 gpm
36.7 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift (at 24"/610mm):4138 lbs
1876 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Engine RPM:540@1900
Dimensions & Tires
Wheelbase:87.4 inches
221 cm
Weight:5710 lbs
2590 kg
Front tire:7.50x16
Rear tire:13.6/12x38
Full dimensions and tires ...
Electrical
Charging system:alternator
Charging amps:30
Battery volts:12
Battery AH:80
