Ford 7810S Tractors

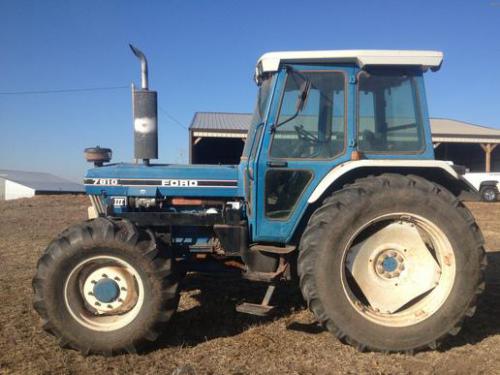

Ford 7810S
Power: 100 hp
Date of manufacture :
1994 - 1998
Production
Manufacturer:Ford
Type:Utility tractor
Factory:Queretaro, Mexico
Original price:$33,000 (1998)
Ford 7810S Power
Engine:100 hp
74.6 kW
PTO (claimed):90 hp
67.1 kW
Ford 7810S Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post ROPS.
Transmissions:8-speed unsynchronized gear
 16-speed two-speed power shift
Hydraulics
Type:gear pump
Pressure:2500 psi
172.4 bar
Valves:2
Pump flow:9.7 gpm
36.7 lpm
Tractor hitch
Rear Type:II
Rear lift:4040 lbs
1832 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/100
Dimensions & Tires
2WD Wheelbase:97.8 inches
248 cm
4WD Wheelbase:99.1 inches
251 cm
Weight:7721 to 8361 pounds
Front tire:10.00-16
Rear tire:18.4-34
Full dimensions and tires ...
7810S Serial Numbers
Location:Right-front upper portion of transmission
1994:ZX200000
1995:200000M
1996:200642M
1997:200933M
1998:201465M

how to read serial numbers...

Electrical
Ground:negative
Battery volts:12
