| Production |
| Manufacturer: | Ford
|
| Type: | Utility tractor
|
| Factory: | Highland Park, Michigan, USA
|
| Total built: | 128,965
|
| Original price: | $1,560 (1954 )
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| Brakes: | differential mechanical drum
|
| Cab: | Open operator station
|
| Transmission: | 4-speed gear
|
| Photos |

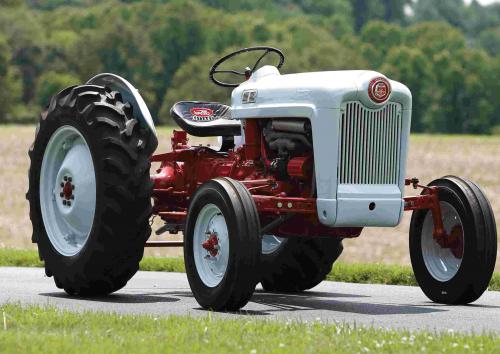

| | Ford NAA photos... |
| Capacity |
| Fuel: | 11 gal
41.6 L
|
| Hydraulic system: | 2 gal
7.6 L
|
| Rear axle: | 8 qts
7.6 L
|
| Hydraulics |
| Type: | live
|
| Capacity: | 2 gal
7.6 L
|
| Pressure: | 2000 psi
137.9 bar
|
| Pump flow: | 4.8 gpm
18.2 lpm
|
| Oil type: | | 32oF [0oC]↑ | : Type A Hydraulic Oil | | 32oF [0oC]↓ | : Type C Hydraulic Oil |
|
| Steering press.: | 1750 psi
120.7 bar
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | position and draft control
|
| Rear lift: | 800 lbs
362 kg
|
| Power Take-off (PTO) |
| Rear PTO: | transmission
|
| Rear RPM: | 540 (1.125)
|
| Engine RPM: | 545@1500
|
| Dimensions & Tires |
| Wheelbase: | 73.875 inches
187 cm
|
| Weight: | 2550 to 2814 pounds
|
| Front tire: | 5.50-16
|
| Rear tire: | 10-28
|
| Full dimensions and tires ... |
| NAA Serial Numbers |
| Location: | Front of engine block (early) or left side of transmission case (later).
|
photo of NAA serial number
| | 1952: | NAA 1
|
| 1953: | NAA 4930
|
| 1954: | NAA 77478
|
| Final: | NAA 128965
|
how to read serial numbers...
|
| External Links |
| N Tractor Club: |
| Belt Pulley |
| Diameter: | 9 inches
22 cm
|
| RPM: | 1358
|
| Speed: | 3199 ft/min
975.06 meters/min
|
| Electrical |
| Ground: | positive
|
| Charging system: | generator
|
| Charging amps: | 20
|
| Battery volts: | 6
|
|
