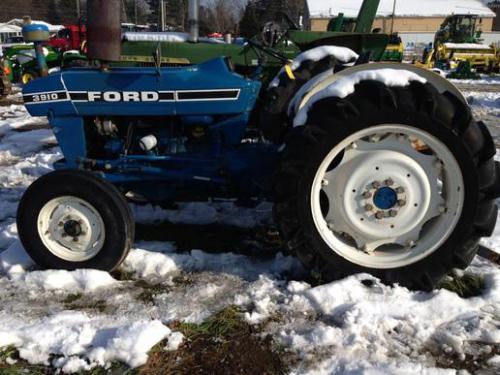

Ford-New Holland 3910 Tractors
 |
|
Power: 47 hp
Date of manufacture : 1983 - 1989 |
| Production |
| Manufacturer: | Ford-New Holland
|
| Type: | Utility tractor
|
| Original price: | $16,200 (1989 )
|
| Variants |
| 3910: | utility
|
| 3910N: | narrow
|
| 3910NO: | low-profile
|
| Ford-New Holland 3910 Power |
| Engine (gross): | 50 hp
37.3 kW
|
| Engine: | 47.5 hp
35.4 kW
|
| PTO (claimed): | 42 hp
31.3 kW
|
| Drawbar (tested): | 35.62 hp
26.6 kW
|
| PTO (tested): | 42.67 hp
31.8 kW
|
| Ford-New Holland 3910 Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | inboard planetary
|
| Differential lock: | mechanical rear
|
| Steering: | power assist
|
| Brakes: | differential wet disc
|
| Cab: | Two-post fixed ROPS. Cab optional.
|
| Transmissions: | 8-speed
|
| | 8-speed synchromesh
|
| | 6-speed mechanical shuttle
|
| Capacity |
| Fuel: | 13 gal
49.2 L
|
| Hydraulic system: | 12.1 gal
45.8 L
|
| Steering: | 3.6 qts
3.4 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 12.1 gal
45.8 L
|
| Pressure: | 2500 psi
172.4 bar
|
| Valves: | 1
|
| Pump flow: | 7.7 gpm
29.1 lpm
|
| | 12.8 gpm
48.4 lpm *Optional
|
| Steering cap.: | 3.6 qts
3.4 L
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | position and top-link draft control
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| 2WD Wheelbase: | 77.5 inches
196 cm
|
| 4WD Wheelbase: | 84.1 inches
213 cm
|
| Weight: | 4615 to 5082 pounds
|
| Front tire: | 7.50-15
|
| Rear tire: | 13.6-28
|
| 3910 Serial Numbers |
| Location: | Transmission cover, right-front.
|
| 1982: | C681910
|
| 1983: | C695880
|
| 1984: | C713459
|
| 1985: | C737800
|
| 1986: | C754100
|
| 1987: | C768000
|
| 1986: | BA74292
|
| 1987: | BB05681
|
| 1988: | BB31777
|
| 1989: | BB84620
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Mk I Charging amps: | 32
|
| Mk II Charging amps: | 51
|
| Battery volts: | 12
|
| Battery AH: | 128
|
|
