Navigation: Home > Hesston > 1880

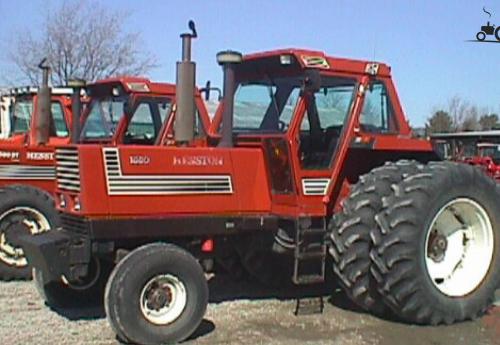

Hesston 1880 Tractors

Hesston 1880
Power: 177 hp
Date of manufacture :
1981 - 1984
Production
Manufacturer:Hesston (a part of Fiat)
Type:Row-Crop tractor
Original price:$57,125 (1990)
Variants
1880DT:4WD
Hesston 1880 Power
PTO (claimed):160 hp
119.3 kW
Drawbar (tested):136.47 hp
101.8 kW
PTO (tested):162.48 hp
121.2 kW
Hesston 1880 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD optional
Steering:hydrostatic power
Brakes:differential hydraulic wet disc
Cab:Supercomfort cab standard with air conditioning
Transmissions:12-speed
 24-speed
Hydraulics
Pressure:2450 psi
168.9 bar
Valves:3
Pump flow:14.7 gpm
55.6 lpm
Tractor hitch
Rear Type:II
 IIIN optional
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000
Dimensions & Tires
Wheelbase:116.8 inches
296 cm (2WD)
 113.5 inches
288 cm (4WD)
Weight:13448 to 16990 pounds
Front tire:11.00-16
Rear tire:20.8-38
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:65
Battery volts:12
