Hinomoto E25 Tractors

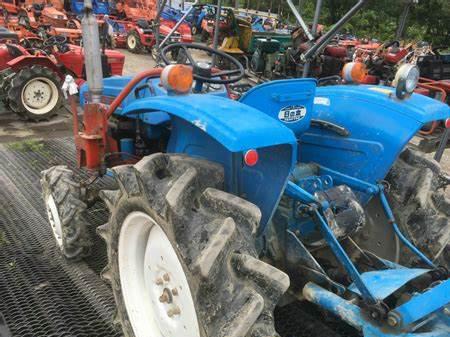

Hinomoto E25
Power: 25 hp
Date of manufacture :
1977 - 1979
Production
Manufacturer:Hinomoto
Type:Compact Utility tractor
Factory:Japan
Variants
E25D:4WD
Hinomoto E25 Power
Engine:25 hp
18.6 kW
Hinomoto E25 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Cab:Open operator station.
Transmission:12-speed
Power Take-off (PTO)
Rear RPM:540 (1.375)
Engine RPM:580@2500
817@2500
1420@2500
Dimensions & Tires
Wheelbase:59.1 inches
150 cm
Weight:1896 lbs
860 kg
Front tire:4.00-15
Rear tire:9.5/9-24
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
