Hinomoto NX200 Tractors

Hinomoto NX200
Power: 19 hp
Date of manufacture :
1993 - 1995
Production
Distributor:Hinomoto
Manufacturer:Kubota
Type:Compact Utility tractor
Variants
GL200:ROPS
GL200Q:cab
Hinomoto NX200 Power
Engine:19.7 hp
14.7 kW
Hinomoto NX200 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:mechanical wet disc
Cab:Two-post ROPS. Cab optional.
Transmissions:16-speed gear
 16-speed power shift

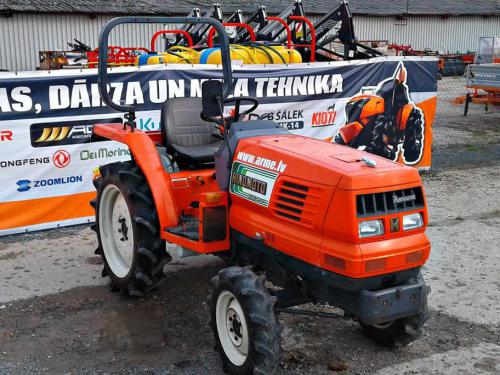

Photos
Hinomoto NX200 photos...
Tractor hitch
Rear Type:I
Power Take-off (PTO)
Rear RPM:546/772/947/1254 (1.375)
Dimensions & Tires
ROPS Wheelbase:61 inches
154 cm
Cab Wheelbase:62.4 inches
158 cm
Weight:2414 to 2745 pounds
Front tire:6-14
Rear tire:8.3-24
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
