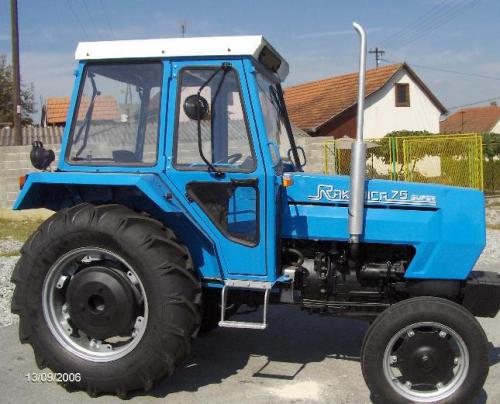

IMR Rakovica R 76 Super Tractors
 |
|
Power: 75 hp
Date of manufacture : 1979 - 1989 |
| Production |
| Manufacturer: | IMR Rakovica
|
| Type: | Utility tractor
|
| Factory: | Belgrade, Serbia
|
| IMR Rakovica R 76 Super Power |
| Engine: | 75 hp
55.9 kW
|
| PTO (claimed): | 63 hp
47.0 kW
|
| IMR Rakovica R 76 Super Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| Steering: | hydrostatic power
|
| Brakes: | mechanical
|
| Trailer brakes: | pneumatic
|
| Cab: | Open operator station. Cab optional with heater.
|
| Transmission: | 6-speed gear
|
| Capacity |
| Fuel: | 15.85 gal
60.0 L
|
| Steering: | 1.6 qts
1.5 L
|
| Hydraulics |
| Type: | open center
|
| Pressure: | 2466 psi
170.0 bar
|
| Steering cap.: | 1.6 qts
1.5 L
|
| Tractor hitch |
| Rear Type: | II
|
| Rear lift (at ends): | 4496 lbs
2039 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540 (1.375)
|
| | 540/1000*Optional
|
| | 540/750*Optional
|
| Engine RPM: | 540@2000
|
| Dimensions & Tires |
| Weight: | 6393 lbs
2899 kg
|
| Front tire: | 6.50-20
|
| Rear tire: | 16.9/14-30
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 45
|
| Charging volts: | 14
|
| Batteries: | 2
|
| Battery volts: | 12
|
| Battery AH: | 55
|
|
