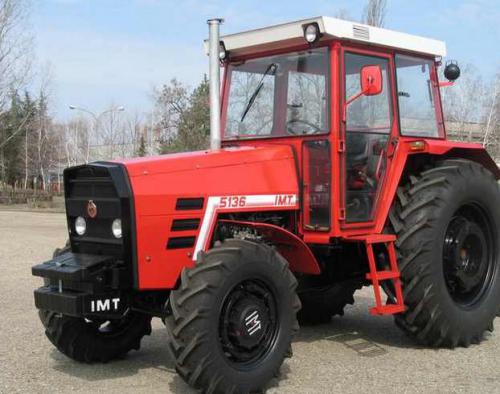

IMT 5136 Tractors

IMT 5136
Power: 135 hp
Date of manufacture :
1982 - 1992
Production
Manufacturer:IMT
Factory:Belgrade, Yugoslavia
Variants
5130:2WD
5136:4WD
IMT 5136 Power
Engine:135 hp
100.7 kW
IMT 5136 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:disc
Cab:Cab standard.
Transmission:10-speed gear
Hydraulics
Total flow:9.3 gpm
35.2 lpm
Tractor hitch
Rear Type:II
Rear lift:7717.5 lbs
3500 kg
Power Take-off (PTO)
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:108.3 inches
275 cm
Weight:13318 lbs
6041 kg
Front tire:12.4-24
Rear tire:18.4-38
Full dimensions and tires ...
