IMT 565 Tractors

IMT 565
Power: 63 hp
Date of manufacture :
1986 - 1996
Production
Manufacturer:IMT
Factory:Belgrade, Yugoslavia
IMT 565 Power
Engine:63 hp
47.0 kW
IMT 565 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:disc
Transmission:6-speed
Photos

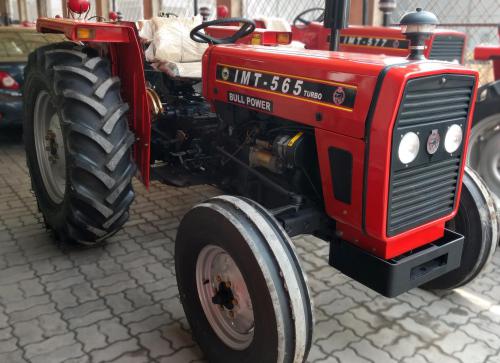

IMT 565 photos...
Hydraulics
Total flow:4.8 gpm
18.2 lpm
 8.7 gpm
32.9 lpm *Optional
Tractor hitch
Rear lift:4189.5 lbs
1900 kg
Power Take-off (PTO)
Rear RPM:540
Dimensions & Tires
Wheelbase:87.4 inches
221 cm
Weight:8048 lbs
3650 kg
Front tire:7.50-16
Rear tire:16.9-28
Full dimensions and tires ...
