International Harvester 454 Tractors
 |
|
Power: 50 hp
Date of manufacture : 1970 - 1973 |
| Production |
| Manufacturer: | International Harvester
|
| Type: | Utility tractor
|
| Factory: | Doncaster, England
|
| Original price: | $4,640 (1973 )
|
| International Harvester 454 Power |
| Engine: | 50 hp
37.3 kW
|
| Drawbar (claimed): | 35 hp
26.1 kW
|
| PTO (claimed): | 40 hp
29.8 kW
|
| Drawbar (tested): | 35.35 hp
26.4 kW
|
| PTO (tested): | 40.86 hp
30.5 kW
|
| International Harvester 454 Engines |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | power
|
| Brakes: | independent hydraulic wet disc
|
| Cab: | Open operator station.
|
| Transmission: | 8-speed sliding gear
|
| Photos |

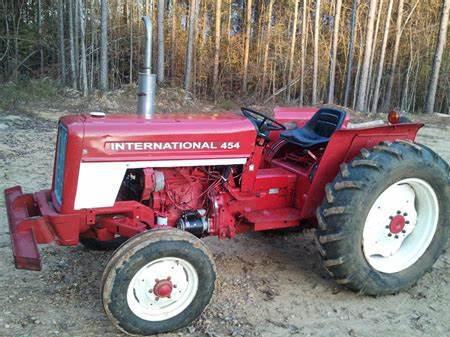

| | International Harvester 454 photos... |
| Hydraulics |
| Pump flow: | 11.9 gpm
45.0 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Rear lift: | 3307 lbs
1500 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 75 inches
190 cm
|
| Weight: | 3780 to 4720 pounds
|
| Front tire: | 6.00-16
|
| Rear tire: | 13.6-28
|
| 454 Serial Numbers |
| Location: | Clutch housing, left side of tractor.
|
| 1970: | 501
|
| 1971: | 508
|
| 1972: | 4908
|
| 1973: | 8064
|
how to read serial numbers...
|
| Electrical |
| Charging system: | alternator-generator
|
| Charging amps: | 32
|
| Batteries: | 1 (gas)
|
| | 2 (diesel)
|
| Battery volts: | 12 (gas)
|
| | 6 (diesel)
|
| Battery AH: | 40 (gas)
|
| | 135 (diesel)
|
|
