International Harvester D-514 Tractors

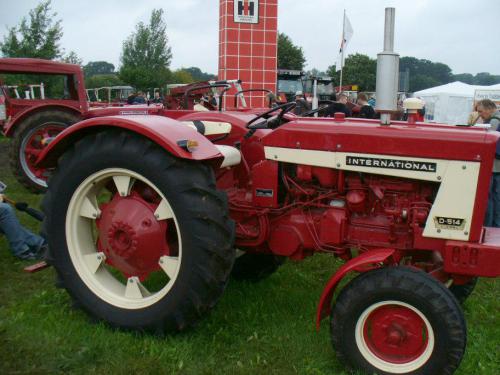

International Harvester D-514
Power: 53 hp
Date of manufacture :
1963 - 1965
Production
Manufacturer:International Harvester
Type:Utility tractor
Factory:Neuss, Germany
Total built:1199
International Harvester D-514 Power
Engine:53 hp
39.5 kW
International Harvester D-514 Engine
Mechanical
Chassis:4x2 2WD
Steering:power
Cab:Open operator station.
Transmissions:5-speed gear
 10-speed two-speed power shift
Photos
International Harvester D-514 photos...
Tractor hitch
Rear Type:II/I
Power Take-off (PTO)
Rear RPM:540 (1.375)
Dimensions & Tires
Wheelbase:73.1 inches
185 cm
Weight:5556 lbs
2520 kg
Front tire:7.50-16
Rear tire:13-30
Full dimensions and tires ...
Belt Pulley
Diameter:11 inches
27 cm
Width:7.5 inches
19 cm
RPM:1168
Speed:3366 ft/min
1025.96 meters/min
